Hi Daniweb members,

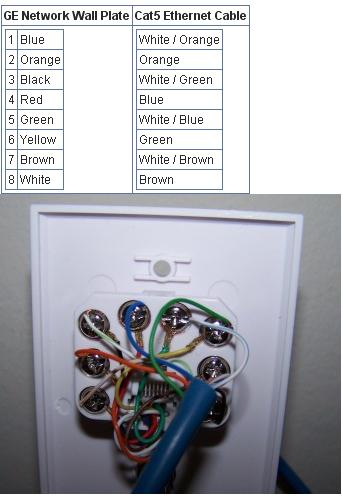

I have GE Network WallPlate connected to one end of the CAT5 and wire as following screen shot:


What i would like to know is how to wire the other end of the cable using the RJ45 jack (male) so that i can connect it to a Router?


thanks in advance

Traitimmapu

GEWallPlate.JPG 28.82 KB
  • 2 Contributors
  • 1 Reply
  • 98 Views
  • 1 Week Discussion Span
  • Latest Post Latest Post by bijoys93
Member Avatar for bijoys93

In Your Wall plate think it is Straight through configuration ,if it is the color code is rite and you are able to connect to router
